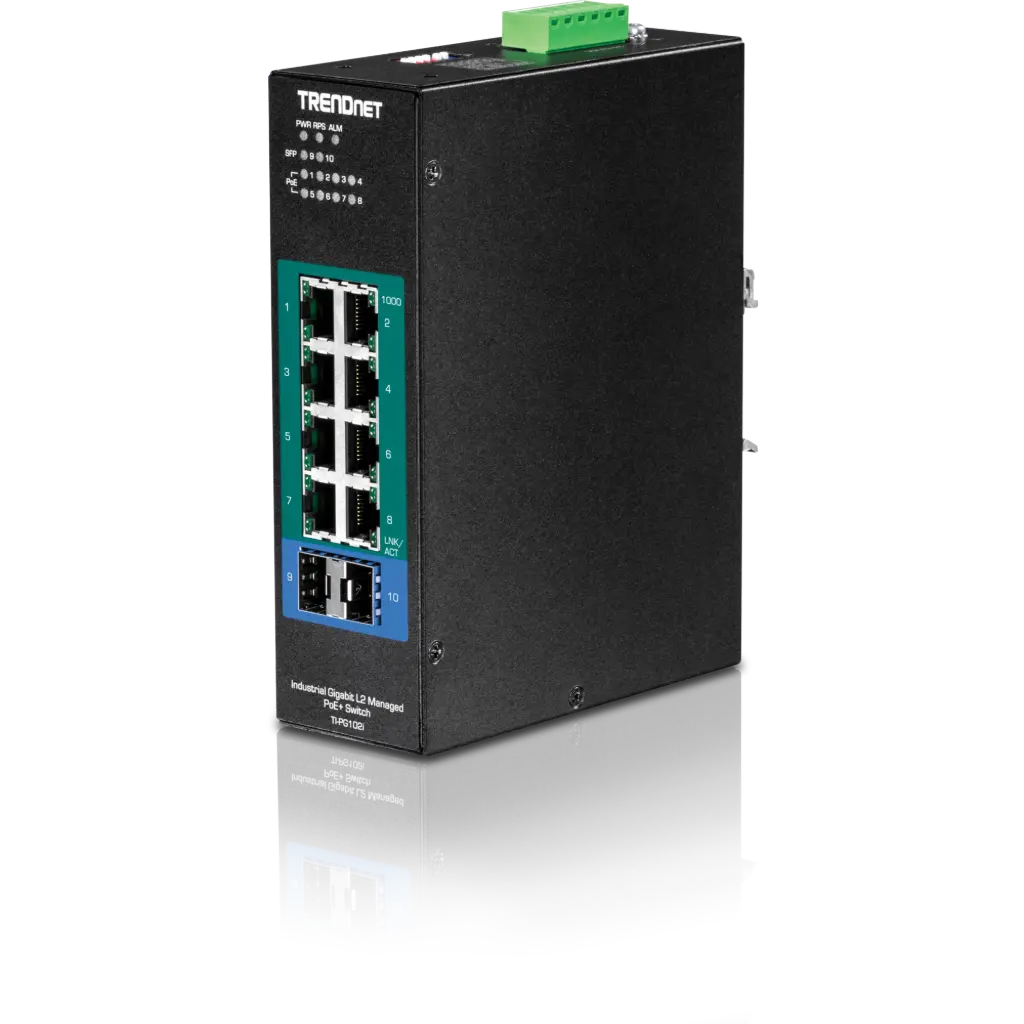

TRENDnet 10-Port Industrial Gigabit PoE+ DIN-Rail Switch
-
ضمان الشركة المصنعة.
-
إشعارات SMS
-
الاسترجاع والاستبدال
-
طرق الدفع متنوعة
جميع منتجاتنا أصلية
وذات جودة عالية
لديك 7 أيام لاختبار عملية الشراء الخاصة بك
SKU: |
TI-PG102I |
Tags |
TRENDnet's 10-Port Industrial Gigabit L2 Managed PoE+ DIN-Rail Switch, model TI-PG102i, features eight Gigabit PoE+ ports with a 240W PoE budget, and includes two SFP slots that support both 100Base-FX and 1000Base-FX modules for long distance fiber applications. The hardened switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments. Advanced traffic management controls, troubleshooting, and SNMP monitoring support make this a powerful solution for SMB networks.
PoE Power
A 240W PoE power budget supplies up to eight Power over Ethernet devices, and includes advanced PoE port controls such as enabling / disabling PoE, power priority, PD alive check, and power scheduling.
Integration Flexibility
Managed features include access control lists, VLAN, IGMP snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration.
Industrial Design
Equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments.
Hardware
PoE Power
Supplies up to 30W of PoE+ power per port with a 240W power budget
Network Ports
8 x Gigabit PoE+ ports, 2 x Gigabit SFP Slots
Integrated DIN-Rail Mount
IP30 rated metal enclosure with integrated DIN-rail mounting hardware
Switching Capacity
20 Gbps switching capacity
Redundant Power
Dual redundant power inputs with overload current protection
Alarm Output
Alarm output triggered by power failure of primary and / or redundant power (defined by DIP switch)
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 10 KB), for increased performance
Extreme Temperatures
Hardened switch is rated for an operating temperature range of -40 to 70 ºC (-40 to 158 ºF)
Electro Magnetic Compliance
Complies with IEC61000-6-2 EMC generic standard immunity for industrial environments
| الشركة المصنعة | TRENDnet |
| Standard | IEEE 802.1d IEEE 802.1p IEEE 802.1Q IEEE 802.1w IEEE 802.1X IEEE 802.1ab IEEE 802.1ax |
| Interface | 8 x Gigabit PoE+ ports 2 x 100/1000Mbps SFP slots |
| Data Transfer Rate | Ethernet: 10Mbps (half-duplex), 20Mbps (full-duplex) |
| Switching capacity | 20Gbps |
| Forwarding rate | 14.88Mpps |
| PoE | PoE budget: 240W |
| المقاسات | 160 x 120 x 50mm (6.3 x 4.72 x 1.97 in.) |
