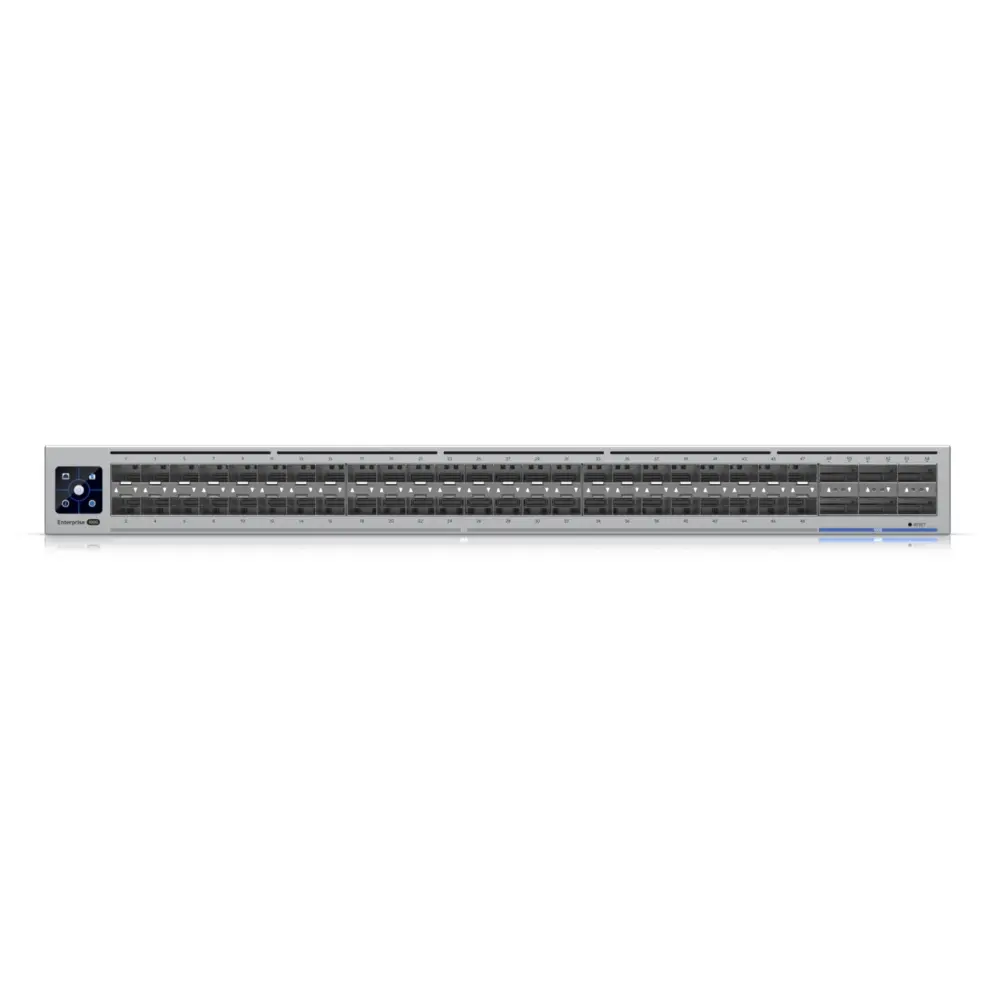

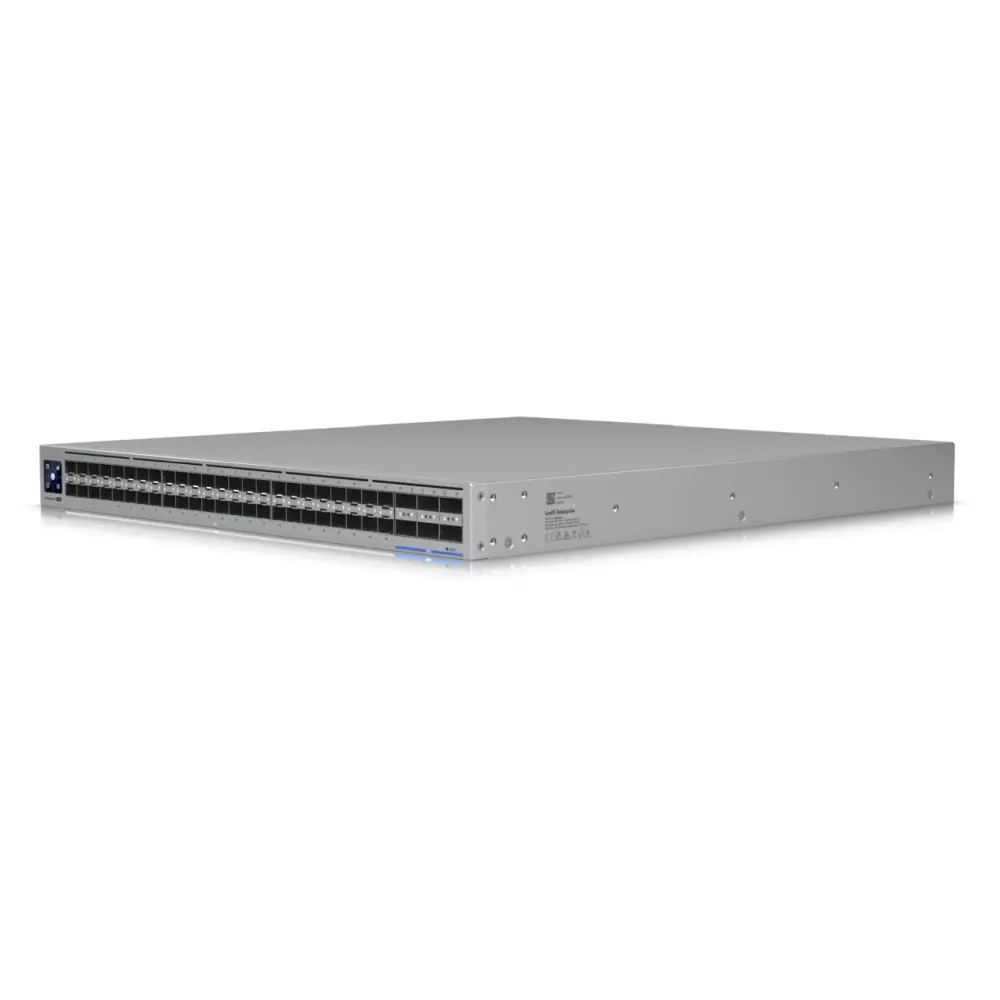

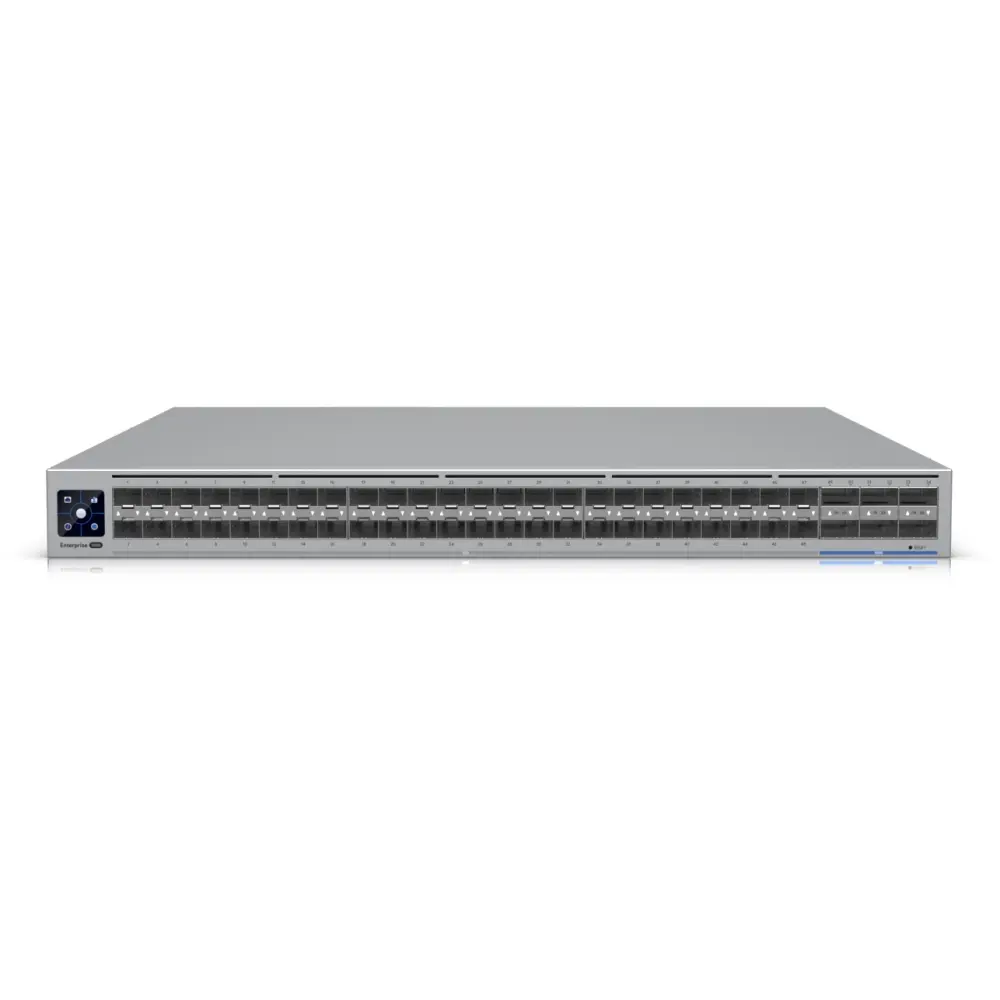

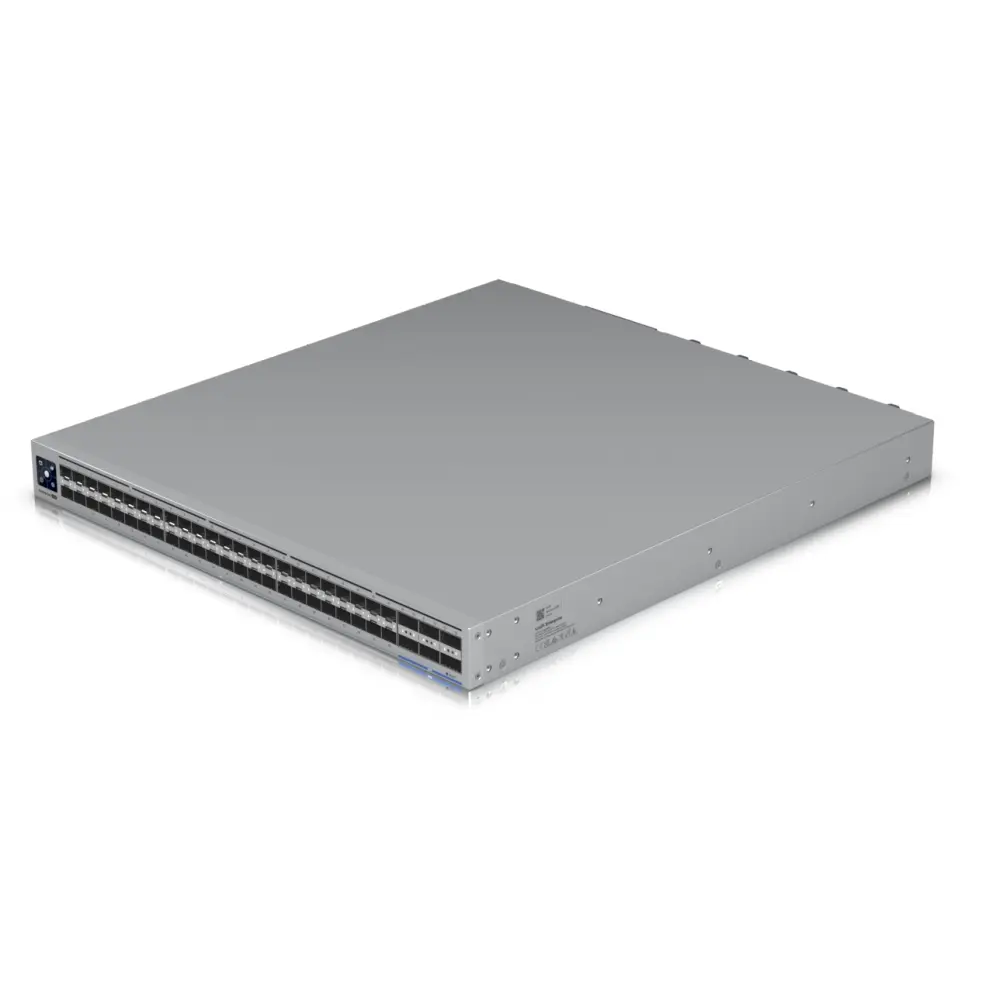

Ubiquiti Enterprise Campus Aggregation (ECS-Aggregation)
The Ubiquiti Enterprise Campus Aggregation is a high-density 100G/25G Layer 3 Etherlighting™ aggregation switch with MC-LAG support for high availability system design.
Ubiquiti ECS-Aggregation Key Features:
- (48) 25G SFP28 ports
- (6) 100G QSFP28 ports
- Multi Chassis Link Aggregation (MC-LAG) support for high availability and load balancing*

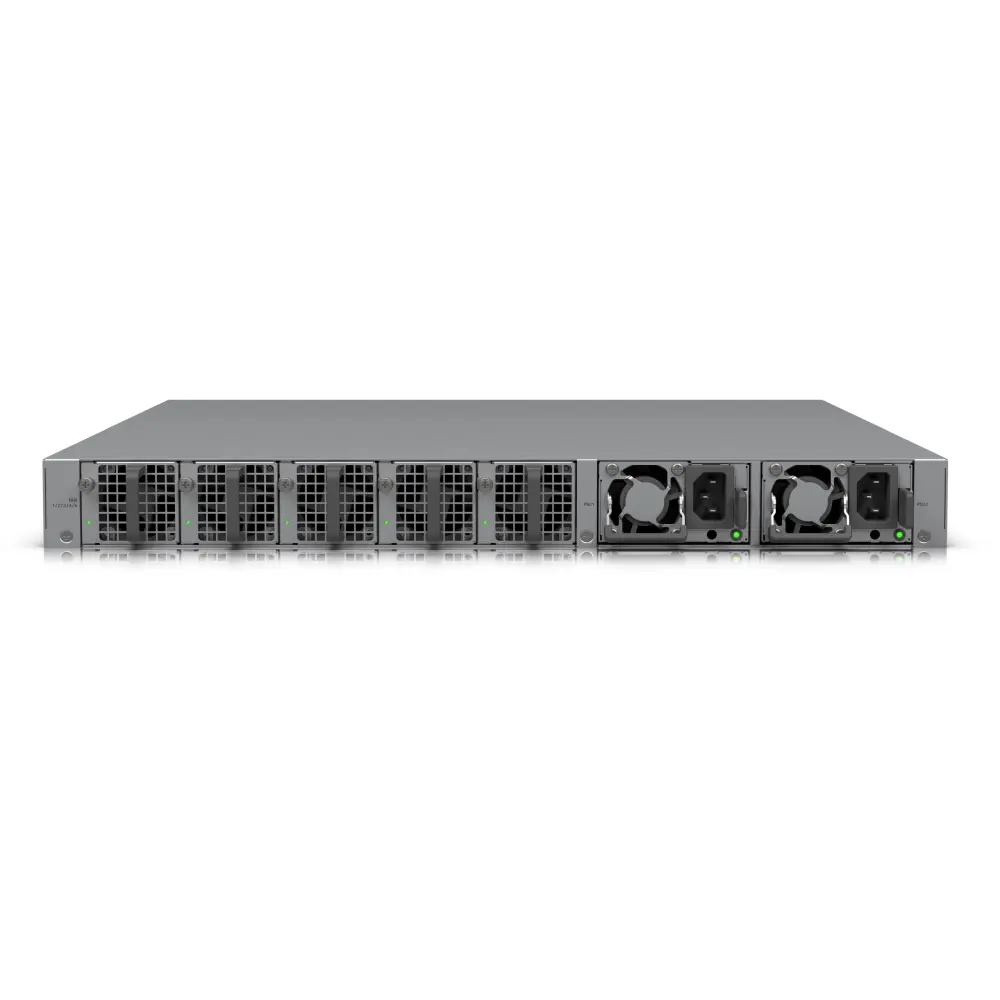

- (2) included hot-swap PSUs for power redundancy
- (5) included hot-swap fan modules
The Ubiquiti ECS-Aggregation with (48) 25G SFP28 ports and (6) 100G QSFP28 ports is designed for robust networking needs. It supports Multi Chassis Link Aggregation (MC-LAG) for enhanced high availability and load balancing, ensuring seamless operation even during peak demands. With (2) included hot-swap PSUs, the switch offers reliable power redundancy, minimising downtime due to power failures.
| Brands | Ubiquiti Networks |
| Ports | 48(25G/10G) / 6(100G/40G) |
| Form Factor | Rack mount (1U, Full-Depth) |
| Switching capacity | 3.6 Tbps |
| Forwarding rate | 2.4 Bpps |
| Max power consumption | 340W |
| Power Supply | (2) Hot-swappable AC/DC 550W power modules |
| Operating System | Version 8.5.6 and later |
| Dimension | 442.4 x 43.7 x 496 mm (17.4 x 1.7 x 19.5") |
