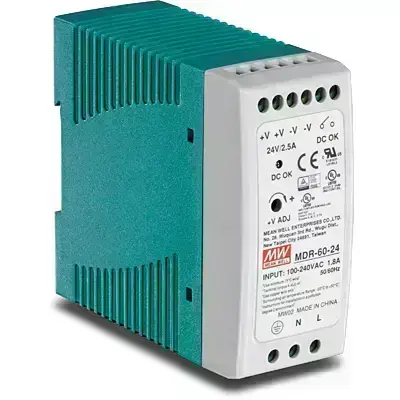

TRENDnet TI-M6024 60W Single Output Industrial DIN-Rail Power Supply
-
Manufacturer's warranty.
-
SMS notification.
-
Return and exchange.
-
Different payment methods.
All of our products are original
with high quality
You have 7 days to test your purchase
SKU: |
TI-M6024 |
Tags |
|
60 W Single Output Industrial
DIN-Rail Power Supply
TI-M6024 (Version V1)
- Industrial power supply with integrated DIN-rail mount
- Provides up to 60 Watts of power (24 V, 2.5 A)
- Universal AC input
- Short circuit/overload/over voltage protection
- UL 508 approved
- 100% full load burn-in test
- Extreme -20 to 70 °C (-4 to 158 °F) operating temperature range
60 Watt Power
Provides up to 60 Watts (24 V, 2.5 A) of power for PoE devices such as switches, network cameras, and access points.
Full Load Test
This power supply undergoes a 100 % full load burn-in test
Extreme Temperatures
Rated for an operating temperature range of -25 to 70 °C (-13 to 158 °F)
Passive Cooling
Cooling by free air convection
Safety Certifications
Certified for UL 508, UL 60950-1, TUV EN60950-1, and Class I, Div. 2 Group A, B, C, D hazardous locations T4
Vibration Resistant
Rated for vibration (IEC 60068-2-6)
Overload Protection
Overload/short circuit/over voltage/over temperature protection
DIN-Rail Mount
Metal enclosure with integrated DIN-rail mount
Electro Magnetic Emission/Immunity
Compliance to EN55011, EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2/3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024, EN61000-6-2, EN61204-3, heavy industry level, and criteria A
| Brands | TRENDnet |
| Interface | DIN rail: TS-35/7.5 or 15 |
| Output Power | 60 Watts, 24 V, 2.5 A |
| Input Power | 100-240 V AC, 50/60 Hz, 1.8 A 120-370 V DC |
| Dimension | 40 x 100 x 90 mm (1.6 x 3.9 x 3.5 in.) |
