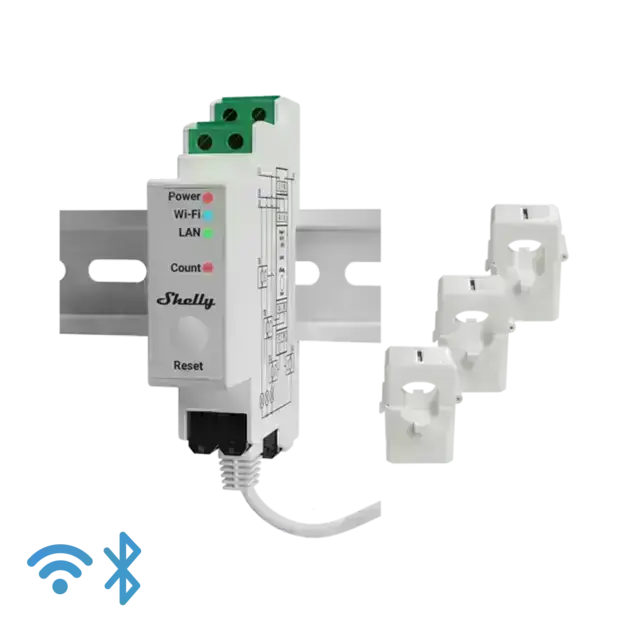

Shelly Pro 3EM 120A DIN-mountable 3-Phase Energy Meter
-
Manufacturer's warranty.
-
SMS notification.
-
Return and exchange.
-
Different payment methods.
All of our products are original
with high quality
You have 7 days to test your purchase
SKU: |
FG3800235268100 |
Tags |
why shelly pro 3em?
Next-generation 3-Phase Energy Meter
Shelly Pro 3EM is a Wi-Fi-operated DIN-mountable 3-Phase Energy Meter with Wi-Fi, Bluetooth, and LAN connectivity. With active energy measurement accuracy of 1%, Shelly Pro 3EM can be used to monitor the consumption of any home appliances, electric circuits, and office equipment individually. It features 60 days of on-device historical data with a 1-minute resolution for each phase. Additionally, its scripting functionalities allow for the execution of complex scenes and provide broader monitoring abilities.
Functionalities
features
Industry-grade security
Shelly Pro 3EM supports mTLS for MQTT, HTTP, and secure outbound WebSockets. Its industry-grade security allows for direct connections to your cloud infrastructure, reducing the cost of deploying complex networks and VPNs.
Endless use applications
Industrial installations
Shelly Pro 3EM brings support for MODBUS for voltage, current, power, and energies. You can accurately sample your energy usage and instantaneous values of voltage, current, and power. Our new firmware platform allows for custom implementation that can report as fast as every 100ms to your infrastructure.
| Brands | Shelly |
| Wi-Fi standards | 802.11 b/g/n |
| Range | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions) |
| Color | White |
| Bluetooth | 4.2 |
| Material | Plastic |
| Power Supply | 110 - 240 V, 50/60 Hz |
| Dimension | 94x19x69 ±0.5 mm / 3.70x0.75x2.71 ±0.02 in |
| Mounting Kit | DIN rail |
| Properties | Ammeters : 0 - 120 A |
| Max. Power Consumption | < 3 W |
