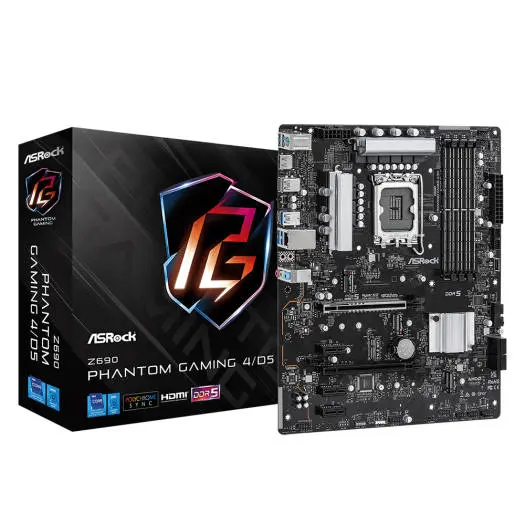

ASRock Z690 Phantom Gaming 4/D5 ATX DDR5 Motherboard
-
Manufacturer's warranty.
-
SMS notification.
-
Return and exchange.
-
Different payment methods.
All of our products are original
with high quality
You have 7 days to test your purchase
SKU: |
90-MXBI60-A0UAYZ |
Tags |
|
Z690 Phantom Gaming 4/D5
PRODUCT BRIEF:
- Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
- 9 Phase Dr.MOS Power Design
- 4 x DDR5 DIMMs
Supports Dual Channel, up to 5800+ (OC) - 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 3 PCIe 3.0 x1
1 M.2 Key-E for WiFi - Graphics Output Options: HDMI
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA3
2 Hyper M.2 (PCIe Gen4x4)
1 Hyper M.2 (PCIe Gen4x4 & SATA3) - 1 USB 3.2 Gen2x2 Front Type-C
2 USB 3.2 Gen2 (Rear Type A+C)
8 USB 3.2 Gen1 (4 Rear, 4 Front) - Intel® Gigabit LAN
DDR5 Memory with Protection Circuit
The reinforced DIMM slot is surfaced mounted onto the motherboard to give better physical strength as well as a more stable memory signal, with this superior revolutionary design, it is able to dramatically overclock DRAM module up to insane frequency.
PCIe 5.0 + Surface-Mount Tech
Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.
High Speed M.2 Solution
This motherboard is capable of accomadating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
POLYCHROME RGB
This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects
| Brands | ASRock |
| CPU | Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) |
| Chipset | Intel® Z690 |
| Memory | 4 x DDR5 DIMM Slots |
| Graphics Engine | Intel® Xe Graphics Architecture (Gen 12) |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio |
| Storage | 4 x SATA3 6.0 Gb/s Connectors |

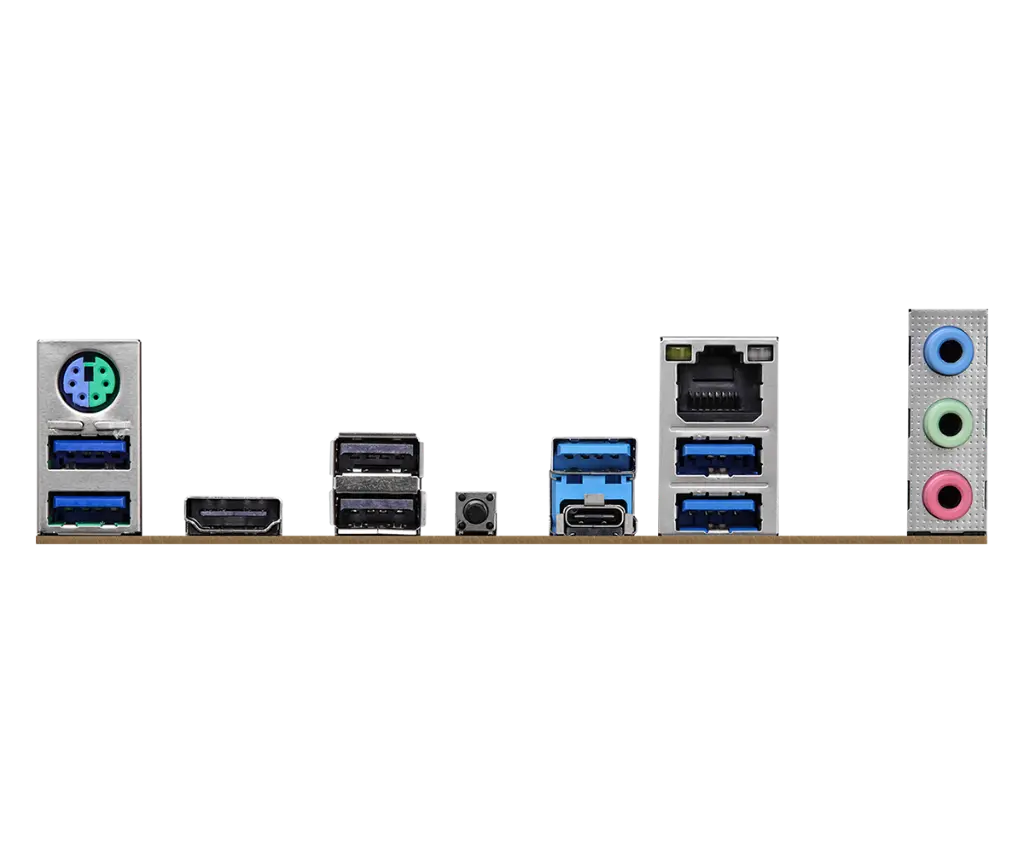

| Ports | 3 x Antenna Mounting Points - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x USB 3.2 Gen2 Type-A Port - 1 x USB 3.2 Gen2 Type-C Port - 4 x USB 3.2 Gen1 Ports - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port with LED |
| Form Factor | ATX |
| Supported System | Microsoft Windows® 10 64-bit / 11 64-bit |
| Dimension | 12.0-in x 9.6-in, 30.5 cm x 24.4 cm |
