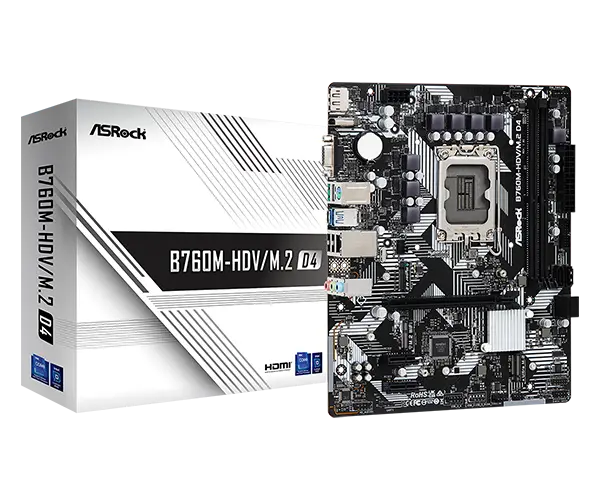

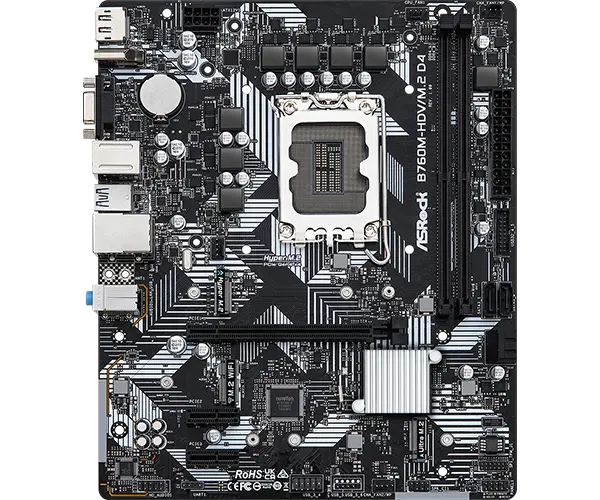

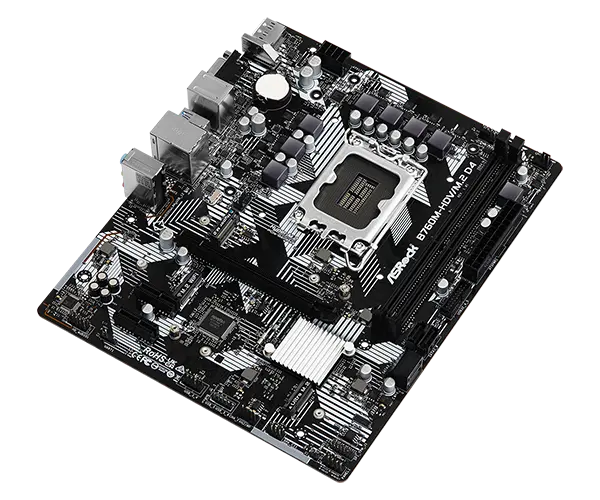

ASRock Intel B760M-HDV/M.2 D4 Micro-ATX Motherboard
-
Manufacturer's warranty.
-
SMS notification.
-
Return and exchange.
-
Different payment methods.
Delivery within KSA and Gulf countries
All of our products are original
with high quality
You have 7 days to test your purchase
SKU: |
90-MXBL40-A0UAYZ |
Tags |
|
B760M-HDV/M.2 D4
- ‧Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
- 5+1+1 Power Phase
- 2 x DDR4 DIMMs
Supports Dual Channel, up to 5333+ (OC) - 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
- Graphics Output Options: HDMI, DisplayPort, D-Sub
- Realtek ALC887/897 7.1 CH HD Audio Codec
- 4 SATA3, 1 Hyper M.2 (PCIe Gen4x4),
1 Ultra M.2 (PCIe Gen3x4 & SATA) - 1 USB 3.2 Gen1 Type-C (Rear),
5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front),
5 USB 2.0 (2 Rear, 3 Front) - Realtek 1G LAN
- Supports ASRock Auto Driver Installer
5+1+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
High Speed M.2 Solution(PCIe Gen4 x4)
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.
| Brands | ASRock |
| CPU | Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) |
| Chipset | Intel® B760 |
| Memory | 2 x DDR4 DIMM Slots |
| Graphics Engine | Intel® Xe Graphics Architecture (Gen 12) |
| Audio | 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec) |
| Storage | 4 x SATA3 6.0 Gb/s Connectors |
| USB | 1 x USB 3.2 Gen1 Type-C (Rear) - 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) - 5 x USB 2.0 (2 Rear, 3 Front) |

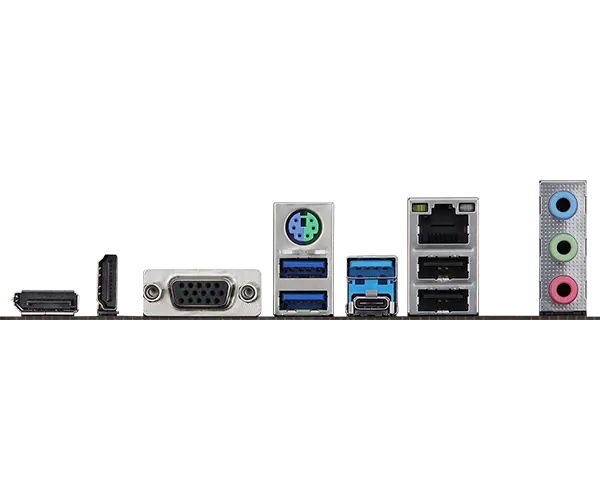

| Ports | 2 x Antenna Mounting Points - 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen1 Type-C Port - 3 x USB 3.2 Gen1 Type-A Ports - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port |
| Form Factor | Micro ATX |
| Supported System | Microsoft Windows® 10 64-bit / 11 64-bit |
| Dimension | 9.6-in x 7.9-in, 24.4 cm x 20.1 cm |
