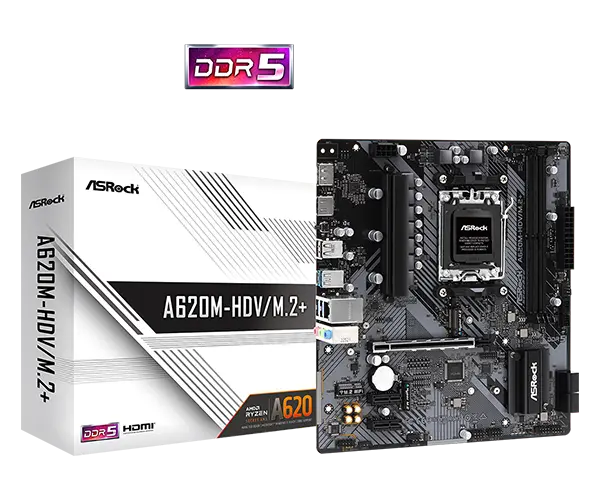

ASRock A620M-HDV/M.2+ 600 Series AMD Micro ATX Motherboard
-
Manufacturer's warranty.
-
SMS notification.
-
Return and exchange.
-
Different payment methods.
Delivery within KSA and Gulf countries
All of our products are original
with high quality
You have 7 days to test your purchase
SKU: |
90-MXBLK0-A0UAYZ |
Tags |
|
A620M-HDV/M.2+
- Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
- 6+1+1 Power Phase, Dr.MOS
- 2 x DDR5 DIMMs
Supports Dual Channel, up to 7200+ (OC) - 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
- Integrated AMD RDNA™ 2 Graphics*
- Graphics Output Options: HDMI, DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA3, 2 Hyper M.2 (PCIe Gen4x4)
- 6 USB 3.2 Gen1 (3 Rear, 1 Rear Type-C, 2 Front)
- Realtek Gigabit LAN
- Supports ASRock Auto Driver Installer, BIOS Flashback
*Actual support may vary by CPU
Build for The Most Advanced PC
Optimized VRM Design
Featuring sturdy components optimized for AMD Ryzen™ 7000X3D series processors, offering enhanced performance for gamers.
6 Layer PCB
The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, giving a stable and reliable system.
Reinforced Steel Slot
[PCIe 4.0 Version]
The reinforced steel slot is capable of supporting PCI Express 4.0 standard. The various benefits include:
✔ Extra anchor points
✔ Stronger latch
✔ Ensure signal stability
✔ Make sure heavy graphics cards to be well-installed.
| Brands | ASRock |
| Supported System | Microsoft Windows® 10 64-bit / 11 64-bit |
| CPU | Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors |
| Chipset | AMD A620 |
| Memory | 2 x DDR5 DIMM Slots |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio |
| Storage | 4 x SATA3 6.0 Gb/s Connectors |
| USB | 1 x USB 3.2 Gen1 Type-C (Rear) - 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) - 6 x USB 2.0 (2 Rear, 4 Front) |
| Ports | 2 x Antenna Mounting Points - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen1 Type-C Port - 3 x USB 3.2 Gen1 Type-A Ports - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port |
| Form Factor | Micro ATX |
| Dimension | 9.6-in x 8.9-in, 24.4 cm x 22.6 cm |
