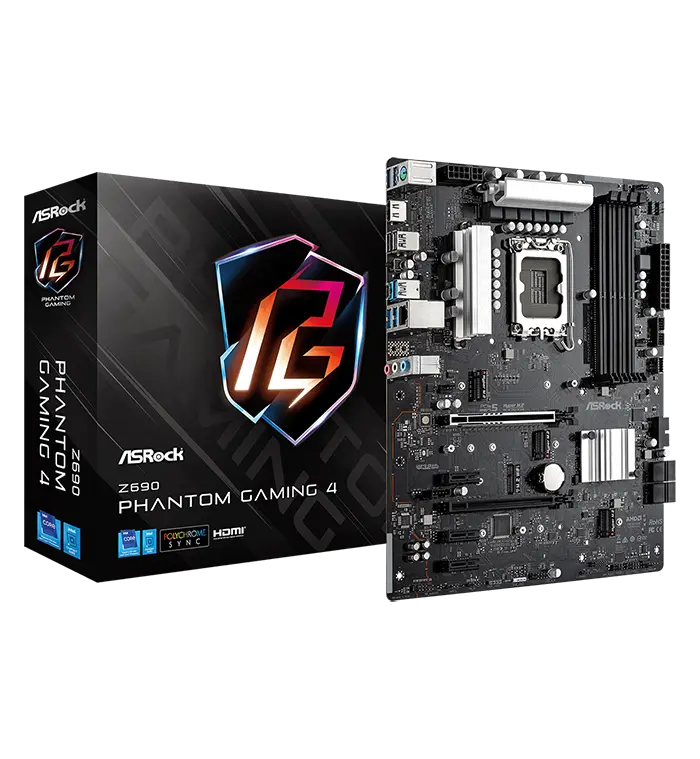

ASRock Z690 Phantom Gaming 4 LGA 1700 Intel Z690 SATA 6Gb/s DDR4 ATX Intel Motherboard
-
Manufacturer's warranty.
-
SMS notification.
-
Return and exchange.
-
Different payment methods.
All of our products are original
with high quality
You have 7 days to test your purchase
SKU: |
90-MXBH70-A0UAYZ |
Tags |
|
ASRock Z690 Phantom
Gaming 4,
LGA1700, ATX,
Polychrome RGB
- Supports 12th Gen Intel Core Processors (LGA1700)
- 9 Phase Dr.MOS Power Design
- Supports DDR4 5000MHz (OC)
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 3 PCIe 3.0 x1
- 1 M.2 Key-E for WiFi
- Graphics Output Options: HDMI
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA3
- 2 Hyper M.2 (PCIe Gen4 x4)
- 1 Hyper M.2 (PCIe Gen4 x4 & SATA3)
- 1 USB 3.2 Gen2x2 Front Type-C
- 2 USB 3.2 Gen2 (Rear Type A+C)
- 8 USB 3.2 Gen1 (4 Rear, 4 Front)
- Intel Gigabit LAN
Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance
lie plentiful gaming oriented features and excellent gaming capabilities. It’s all about bringing a new gaming experience to gamers!
PCIe 5.0 + Surface-Mount Tech
Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard. The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.
Nahimic Audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi,
analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
High Speed M.2 Solution
This motherboard is capable of accomadating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
POLYCHROME RGB
This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. *The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters. *The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.
Front USB 3.2 Gen2x2 Type-C
The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.
BIOS Flashback
Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.
M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot. *Wi-Fi module is not included.
| Brands | ASRock |
| CPU | Supports 13th Gen & 12th Gen Intel Core Processors (LGA1700) -Hybrid and Turbo Boost Max 3.0 Technology |
| Memory | 4x DDR4 DIMM Slots |
| Memory Specification | Dual Channel DDR4 Memory Technology |
| Chipset | Intel Z690 |
| Storage | 4x SATA3 6.0 Gb/s Connectors |
| Ports | 1x HDMI Port , 1x PS/2 Mouse/Keyboard Port , 1x RJ-45 LAN Port with LED , 1x USB 3.2 Gen2 Type-A Port , 1x USB 3.2 Gen2 Type-C Port , 2x USB 2.0 Ports , 3x Antenna Mounting Points , 4x USB 3.2 Gen1 Ports |
| Slots | 1x PCIe 4.0 x16 Slot (PCIE3) , 1x PCIe 5.0 x16 Slot , 3x PCIe 3.0 x1 Slots (PCIE2, PCIE4 and PCIE5) |
| Audio | 7.1CH HD Audio (Realtek ALC897 Audio Codec)-Nahimic Audio |
| Graphics Engine | Intel Xe Graphics Architecture (Gen 12) |
| Form Factor | ATX Form Factor |
| Supported System | Microsoft Windows 10 64-bit / 11 64-bit |
| Dimension | 12.0X9.6-in, 30.5 cm x 24.4 cm |
