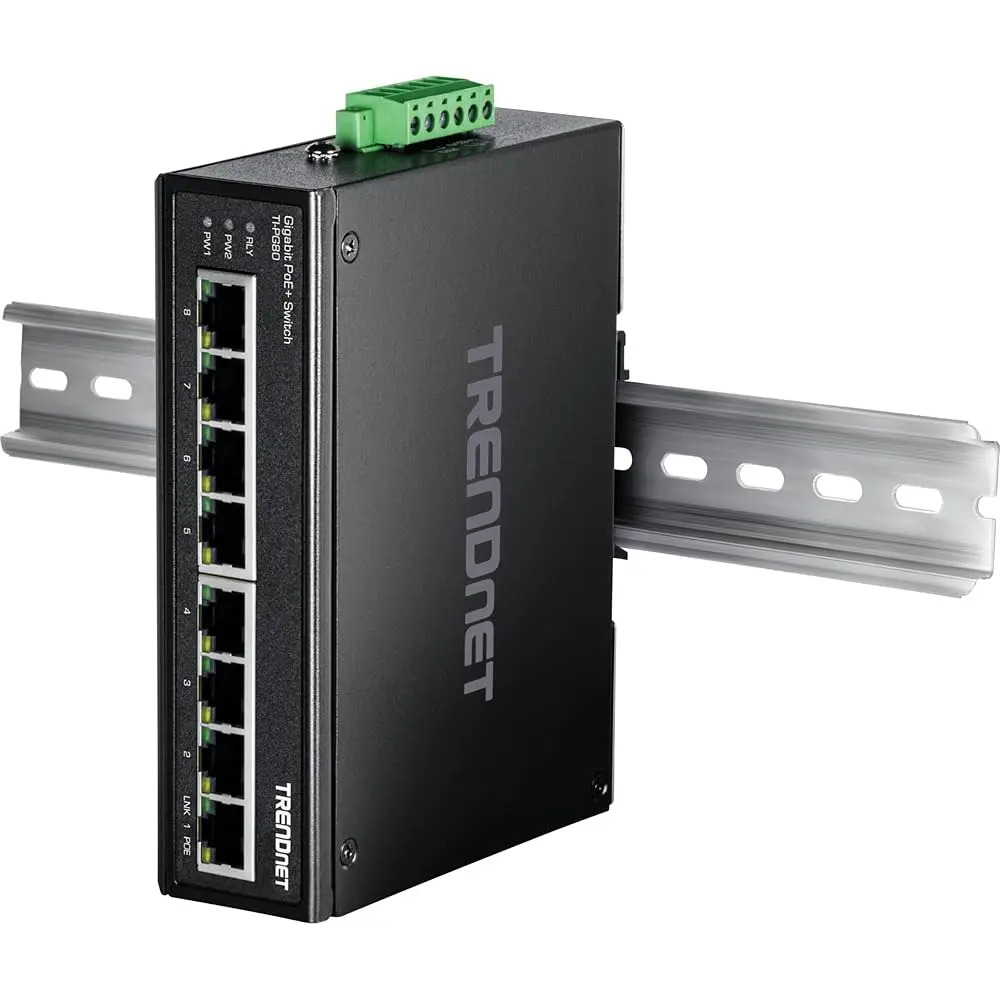

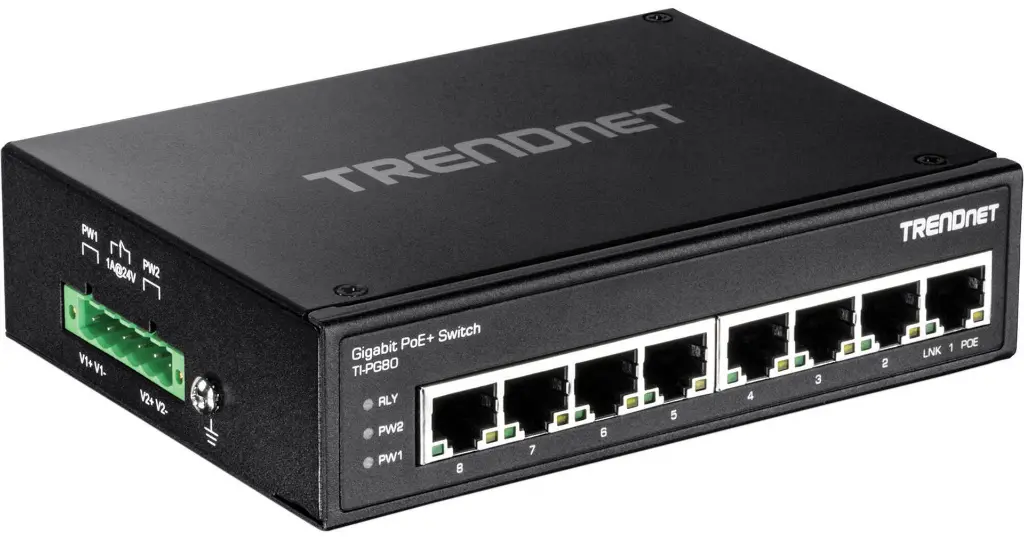

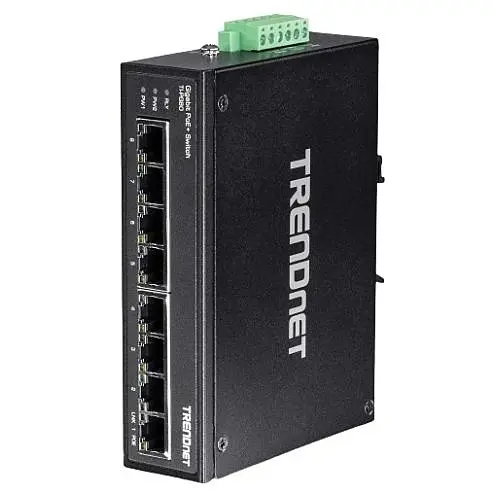

TRENDNET TI-PG80 8-Port Hardened Industrial Gigabit PoE+ DIN-Rail Switch
-
ضمان الشركة المصنعة.
-
إشعارات SMS
-
الاسترجاع والاستبدال
-
طرق الدفع متنوعة
جميع منتجاتنا أصلية
وذات جودة عالية
لديك 7 أيام لاختبار عملية الشراء الخاصة بك
SKU: |
TI-PG80 |
Tags |
TRENDnet's TI-PG80 is a reliable IP30 unmanaged PoE+ DIN-rail switch with hardened components rated for extreme industrial environments. It offers 8 Gigabit PoE+ ports (802.3at/802.3af) and a PoE power budget of up to 200 Watts. Redundant power inputs (power supply sold separately: TI-S24048) and a power failure alarm output trigger support zero downtime applications.
Hardware
Full PoE+ Power Budget
Supplies up to 30 Watts of PoE/PoE+ power per port (802.3at/802.3af) with an up to 200 Watt PoE power budget
Network Ports
8 x Gigabit PoE+ Ethernet ports
Integrated DIN-Rail Mount
IP30 rated metal enclosure with integrated DIN-rail mounting hardware
Switching Capacity
16 Gbps switching capacity
Redundant Power
Dual redundant power inputs with overload current protection
Alarm Output
Alarm output triggered by power failure of primary and / or redundant power (defined by DIP switch)
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 10 KB), for increased performance
Extreme Temperatures
Hardened switch is rated for an operating temperature range of -40 to 70 ºC (-40 to 158 ºF)
Electro Magnetic Compliance
Complies with FCC Part 15 Subpart B Class A and CE EN 55022 Class A standards
| الشركة المصنعة | TRENDnet |
| Wireless standard | IEEE 802.3 , IEEE 802.3ab , IEEE 802.3af PoE , IEEE 802.3at PoE+ , IEEE 802.3u , IEEE 802.3x |
| Interface | 8 x Gigabit PoE+ ports |
| Data Transfer Rate | Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) |
| PoE | PoE budget: 200 Watts |
| مزود الطاقة | Input: 48 - 56 V DC |
| المقاسات | 143 x 104 x 36 mm (5.6 x 4.1 x 1.4 in.) |
