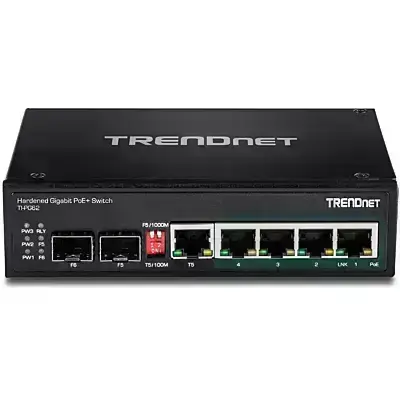

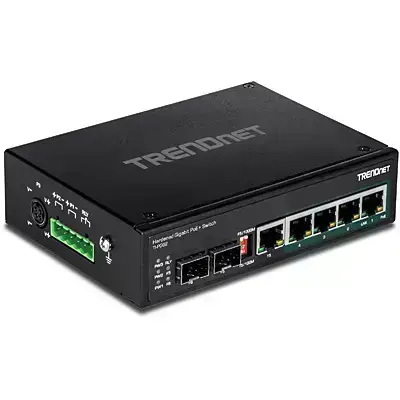

TrendNet TI-PG62 6-Port Hardened Industrial Gigabit PoE+ DIN-Rail Switch
-
ضمان الشركة المصنعة.
-
إشعارات SMS
-
الاسترجاع والاستبدال
-
طرق الدفع متنوعة
جميع منتجاتنا أصلية
وذات جودة عالية
لديك 7 أيام لاختبار عملية الشراء الخاصة بك
SKU: |
TI-PG62 |
Tags |
TRENDnet’s TI-PG62 is a reliable IP30 unmanaged DIN-rail PoE+ switch with a rugged housing rated for extreme industrial environments. It offers 4 Gigabit PoE+ ports, one shared Gigabit port (RJ-45 / SFP), one dedicated SFP slot, and a 12 Gbps switching capacity. Dual redundant power inputs and a power failure alarm relay.
PoE Power
A 120 Watt PoE+ power budget supplies up to four Power over Ethernet devices with PoE+ power.
Fault Tolerance
Features redundant power inputs (Primary and RPS) from external power sources and an output alarm relay to indicate the event of input power failure.
Industrial Hardened Design
Equipped with a rugged IP30 rated enclosure and designed to withstand a high degree of vibration, shock, protection against ESD / EMI / surge, and operate with a wide temperature range (- 40 – 75 °C (- 40 - 167 °F)) for harsh environments.
Hardware
Network Ports
4 x Gigabit PoE+ ports, 1 x shared Gigabit port (RJ-45 / SFP) and 1 x dedicated SFP slot

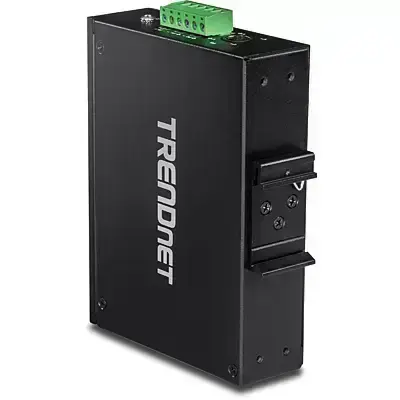

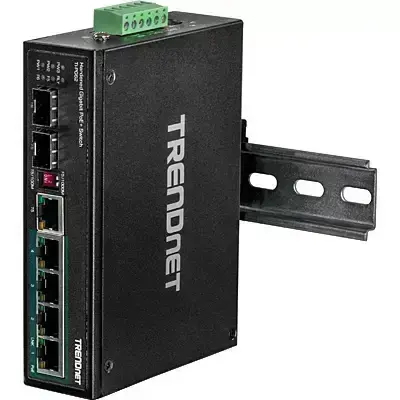

Integrated DIN-Rail Mount
IP30 rated metal enclosure with integrated DIN-rail mounting hardware
Switching Capacity
12 Gbps switching capacity

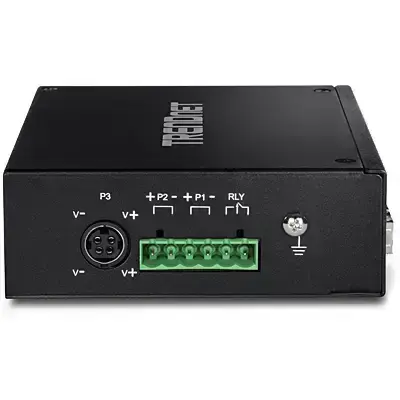

Redundant Power
Dual redundant power inputs with overload current protection
Alarm Output
Alarm output triggered by power failure of primary and / or redundant power (defined by DIP switch)
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 9 KB), for increased performance
Extreme Temperatures
Hardened switch is rated for an operating temperature range of -40 to 70 ºC (-40 to 158 ºF)
Electro Magnetic Compliance
Complies with FCC Part 15 Subpart B Class A and CE EN 55022 Class A standards
| الشركة المصنعة | TRENDnet |
| Interfaces | 1 x Dedicated SFP slot , 1 x Shared Gigabit port , 1 x Shared SFP slot , 4 x Gigabit PoE+ ports |
| Output power | 48V DC, 3.34 A 160 W max |
| Input Power | 100 - 240 V AC, 50/60 Hz, 2 A |
| المقاسات | 143 x 105 x 36 mm (5.6 x 4.1 x 1.4 in.) |
| الحد الأقصى لاستهلاك الطاقة | 48VDC3000 (sold separately |
