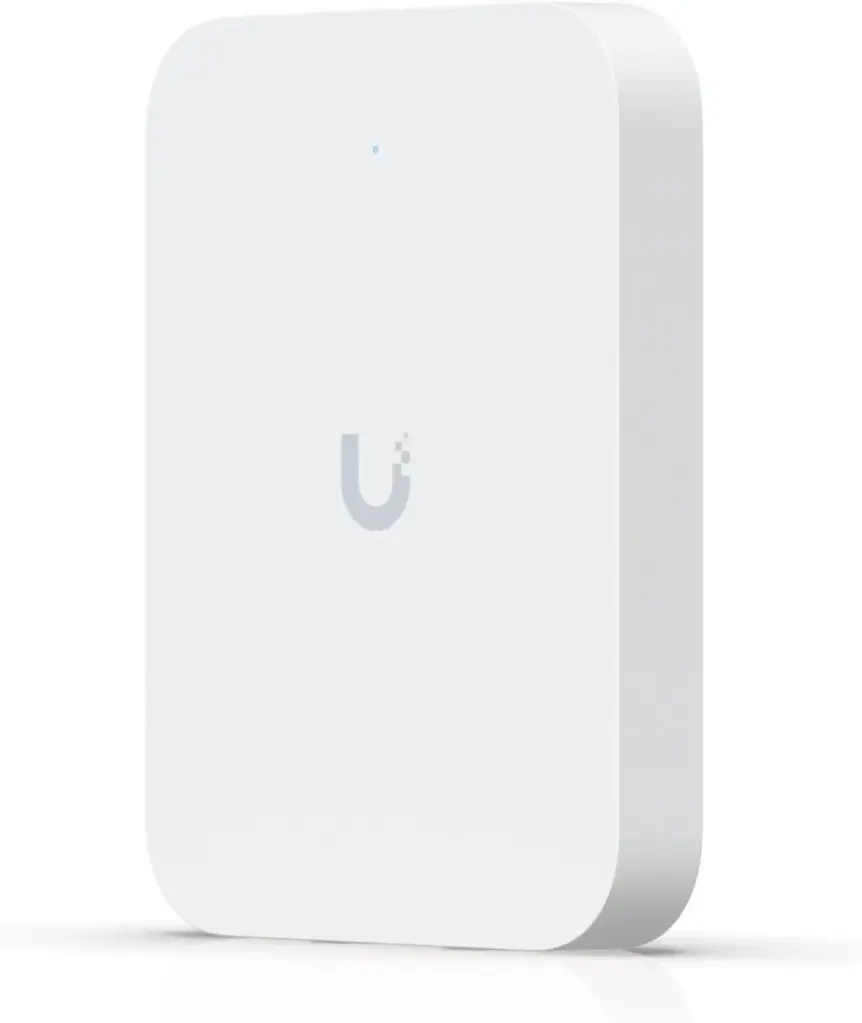

Ubiquiti UniFi U7-IW In-Wall WiFi 7 (802.11be) Access Point
Ubiquiti's U7-IW is the WiFi 7-capable successor to the U6-IW, but with a number of performance and software improvements. The U7-IW delivers dual-band WiFi 7 connectivity with speeds of up to 688Mbps on the 2.4GHz and 4300Mbps on the 5Ghz bands, with a maximum coverage area of 115 m² (1,250 ft²) and supporting over 200 simultaneous connections.
Like the U6-IW, the U7-IW also features an integrated three-port network switch, although each port on the U7-IW now supports a 2.5GbE uplink for extremely high speed connectivity. 1 x 2.5GBE RJ45 port also supports PoE if the U7-IW is supplied with PoE++, offering a seamless way to provide a compatible device like a VoIP phone with both network connectivity and power.
The U7-IW is compatible with Ubiquiti's UniFi centralised management software for easy integration, monitoring and management in context of a wider Ubiquiti installation, and features a wide range of other software capabilities like band steering, wireless meshing and captive hotspot portals .
Key Highlights
- WiFi 7 (802.11be) technology
- 2.4GHz band (2x2 MU-MIMO) with throughput of 688 Mbps
- 5GHz band (2x2 MU-MIMO) with throughput of 4300 Mbps
- 200+ Concurrent clients
- 3 x 2.5G RJ45 ports
- 1 x PoE-Out port
- Band steering
- Wireless meshing
- Captive hotspot portals
- Rate limiting
- Powered by PoE or PoE++ (PoE++ required for PoE-Out)
- Wall-mountable
| Brands | Ubiquiti Networks |
| MIMO | 2 x 2 (DL/UL MU-MIMO) |
| Wifi | WiFi 7 |
| Antenna Gain | 8 dBi |
| TX Power | 24 dBm |
| System requirements | iOS™ version 10.20.2 and later Android™ version 10.21.7 and later , UniFi Network Version 9.0.114 and later |
| Material | Polycarbonate, aluminum alloy |
| Dimension | 137x 98.7 x 30.2 mm (5.4 x 3.9 x 1.2") |
| Max power consumption | 13W (Excluding PoE output) |
