TRENDnet 84V 120W SINGEL Output Industril For TI-PG41-TI-PG541I-TI-PG50F
-
Manufacturer's warranty.
-
SMS notification.
-
Return and exchange.
-
Different payment methods.
All of our products are original
with high quality
You have 7 days to test your purchase

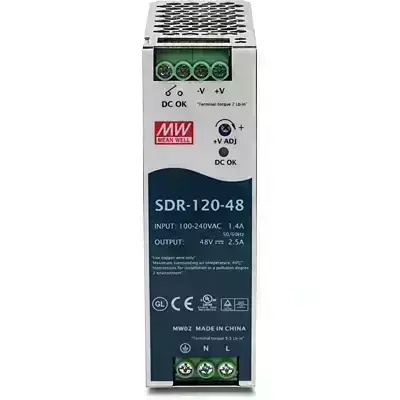

120 W Single Output Industrial
DIN-Rail Power Supply
TI-S12048 (Version V1)
- Industrial power supply with integrated DIN-rail mount
- Provides up to 120 Watts of power (48 V, 2.5 A)
- Built-in active PFC (PF > 0.93)
- Short circuit/overload/over voltage/over temperature protection
- High efficiency (91%) design
- UL 508 approved
- 100 % full load burn-in test
- Extreme -25 to 70 °C (-13 to 158 °F) operating temperature range
120 Watt Power
Provides up to 120 Watts (48 V, 2.5 A) of power for PoE devices such as switches, network cameras, and access points
Full Load Test
This power supply undergoes a 100 % full load burn-in test
Extreme Temperatures
Rated for an operating temperature range of -25 to 70 °C (-13 to 158 °F)
Active PFC
The built-in active Power Factor Controller (PFC, PF>0.93) helps eliminate unusable reactive power

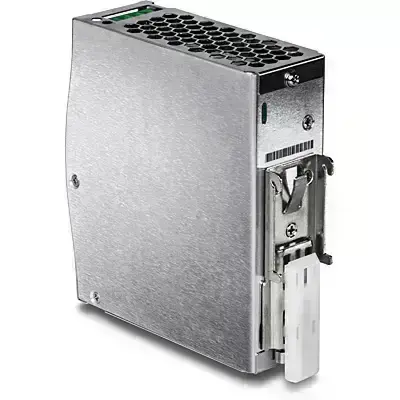

Passive Cooling
Cooling by free air convection
Safety Certifications
Certified for UL 508 and TUV EN60950-1
Overload Protection
Overload/short circuit/over voltage/over temperature protection

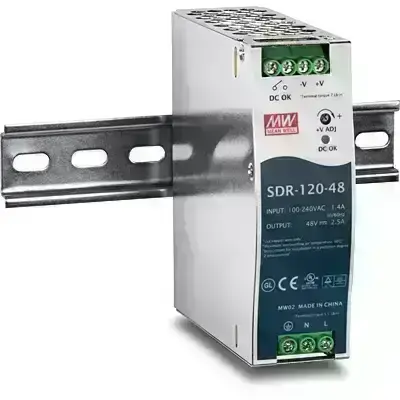

DIN-Rail Mount
Metal enclosure with integrated DIN-rail mount
Electro Magnetic Emission/Immunity
Compliance to EN55011, EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2/3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A, SEMI F47, and GL approved
| Brands | TRENDnet |
| Interface | DIN-rail: TS-35/7.5 or 15 |
| Output Power | 120 Watts, 48 V, 2.5 A |
| Input Power | 100-240 V AC, 50/60 Hz, 1.8 A 125-370 V DC |
| Dimension | 40 x 125 x 114 mm (1.6 x 4.9 x 4.5 in.) |
